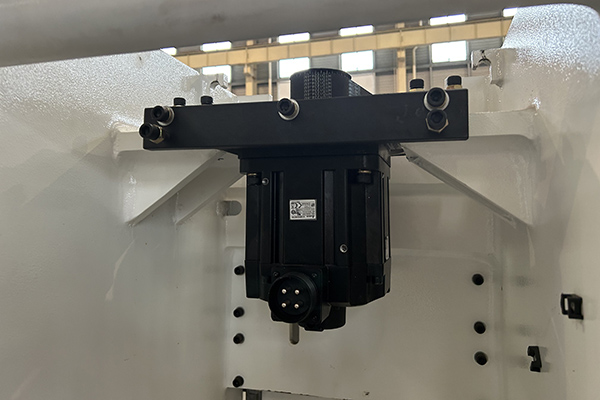

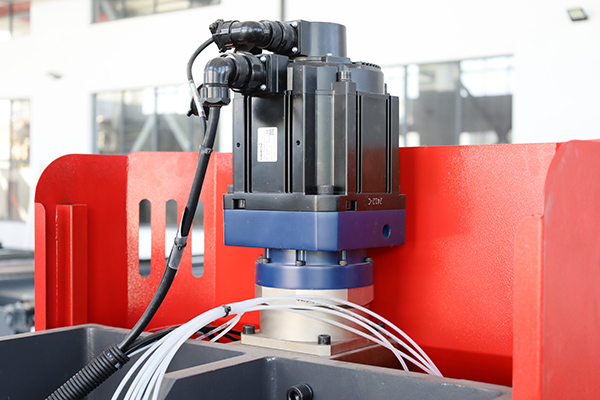

The Jinqiu pure electric servo bending machine is a sheet metal processing equipment that uses servo motor driven ball screw as the core, achieving millimeter level accuracy (± 0.01mm) and 70% energy saving. It is specially designed for precision processing of thin plates, completely eliminating hydraulic pollution and energy waste.
|
|
|
|
|
|
 |
Accuracy and stability
Repetitive positioning accuracy ± 0.01mm, servo motor+ball screw direct drive, combined with grating ruler closed-loop control, eliminates accuracy drift caused by hydraulic system oil temperature fluctuations.
|
|
|
 |

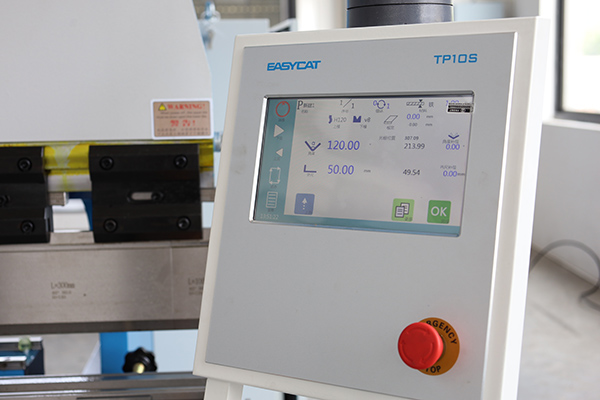

CNC system
By using high-speed acceleration and deceleration algorithms and trajectory prediction algorithms, precise and smooth motion control is achieved, effectively balancing speed and accuracy.
Intelligent angle compensation and material parameter database improve bending accuracy and simplify operations.
The high-end CNC system is equipped with high-speed and high-precision control algorithms to ensure high bending accuracy and smooth motion. |
|
|
 |

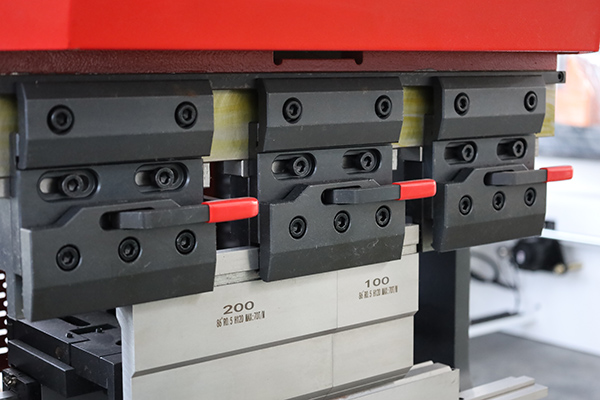

Quick clamp
Our upper molds can be easily and quickly replaced, making good use of time.
|
|
|
|
|
|
|
|
 |

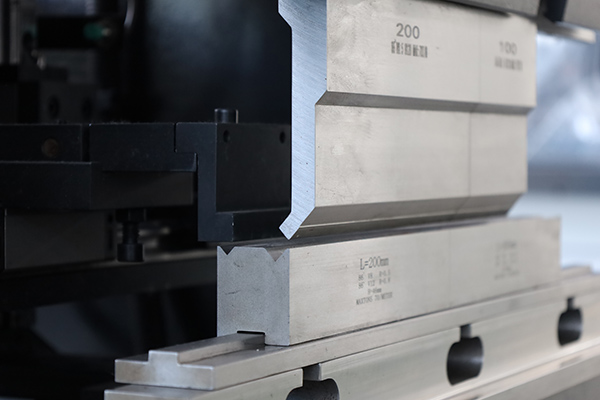

Mold
The upper mold is a quick clamping small goose neck mold, and the lower mold adopts a double V concentric shape.
|
|
|
 |

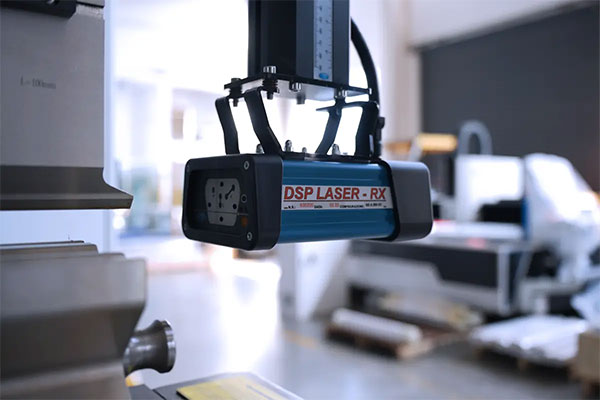

Protective device (optional)
If you have high requirements for security, DSP ® Laser protection is necessary.
|
|
|
|
|
|
|
|
|
 |
|
 |

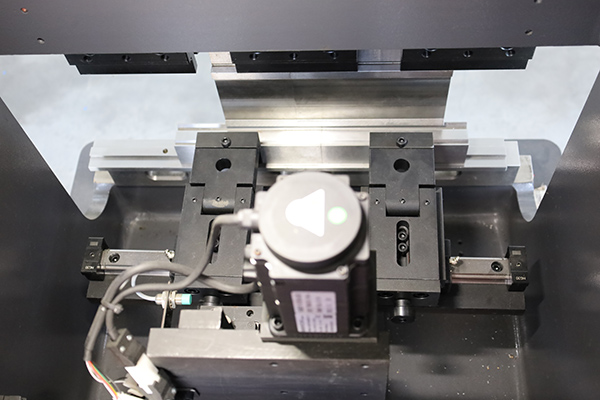

Back gauge
Servo motors drive X-axis, R-axis, and manual Z-axis ball screws for accurate positioning in the rear material stopping system. Adopting a dual linear guide structure, it has high positioning accuracy and fast speed, improving the positioning accuracy and speed of servo motor drive. Flexible selection of multiple axis levels, reliable expansion of system functions, while maintaining accurate positioning to meet various production needs. |
Advantage:
➥ Laser protection, multi beam receiver
➥ Protected areas: front, middle, and rear
➥ The security level is CAT. 4 and SIL3
➥ Protection level of detection box: IP65
➥ Laser classification: 1M category
➥ Response time: 5 milliseconds
➥ Shift point: 5mm+parking space
➥ MAX protection distance can reach 15M
➥ LED indicator lights display various statuses
