CNC system
ESTUNE21S CNC System
High definition hydraulic display screen
Control ordinary motors and frequency converters
X-axis intelligent positioning
Multi step programming, 40 programs, each with 25 steps
Built in time relay function
One click function switching
Unilateral positioning function
One click backup and restore parameters
Chinese and English
Metric system
|
|
|
 |
|

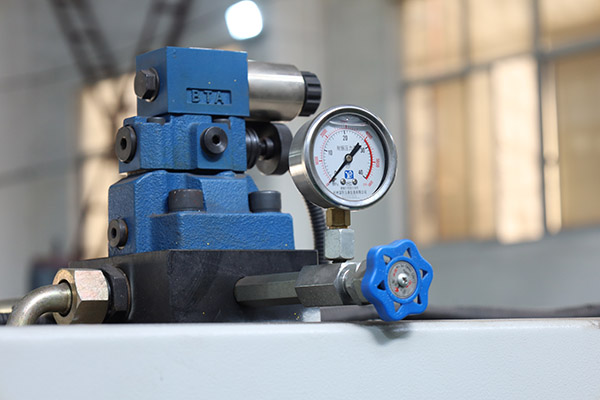

Hydraulic valve group
The machine adopts a good hydraulic valve group.
Due to its oil pressure overload protection function, oil leakage and valve jamming rarely occur.
Real time oil pressure monitoring ensures smooth oil flow and stable operation of equipment.
|
|
|
 |
|

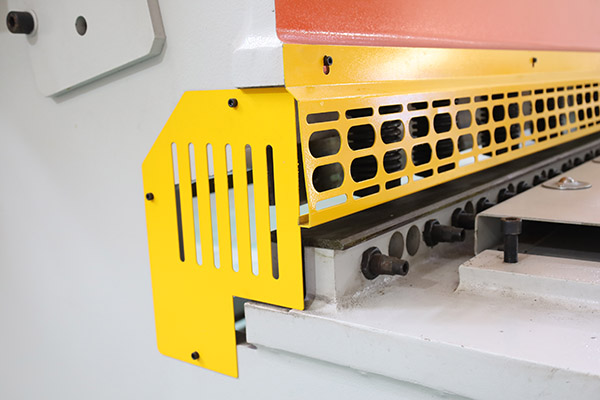

Feed inlet
Our feed inlet design meets safety standards to ensure the safe and reliable operation of the machine.
Our machine provides a minimum feed height equal to the thickness of the sheet; The maximum feeding height is equal to the thickness of the board plus 20-25 millimeters. The machine is also equipped with height adjustment screws, making it easy for users to customize the feeding height.
Our machines are equipped with front and side guardrails to ensure the safe operation of operators.
|
|
 |
Back gauge
One of the important factors in shear capacity is the design and stability of the rear stopper material.
Professional products, stability, and precise backstepping are necessary to achieve high-quality cutting.
The movement of the rear stop system of the high-speed ball screw is also supported by linear guides, which helps the rear stop to achieve longer lifespan, higher sensitivity, and enhanced resistance to any collision. |
|
|
 |

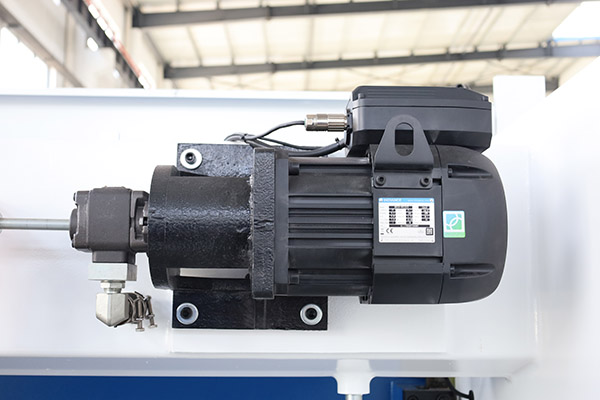

Main motor
The use of good motors increases the service life of the machine and keeps it working in a low-noise environment.
The power level and installation size of the motor comply with IEC standards, making it very easy to use and maintain.
We have the ability to customize the power and voltage of the machine to meet the specific voltage requirements of the customer's location.
|
|
|
|
