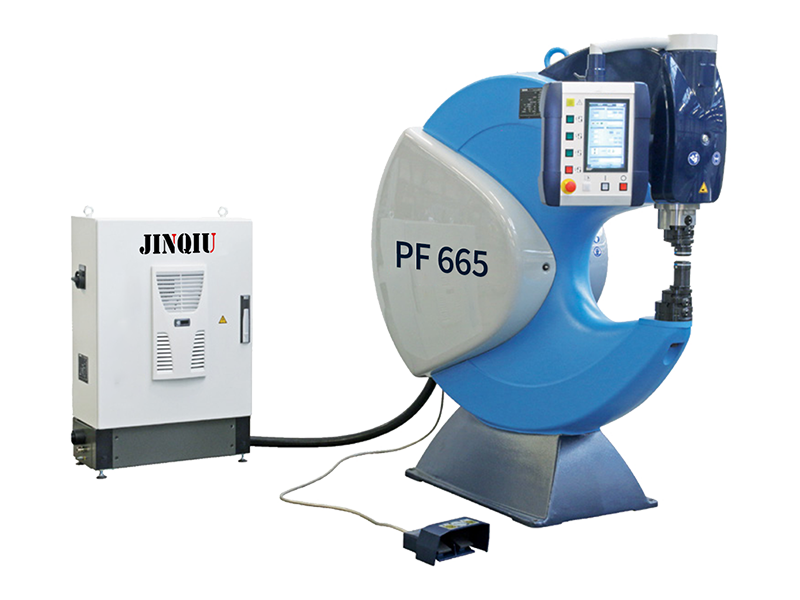

Accor forming machine PF665

    The Jinqiu PF665 Accor forming machine is suitable for non cutting processing of sheet metal and profiles, and can complete various forming processes such as shrinkage, stretching, leveling, curved surfaces, and flanging. JinQiu edge trimming and trimming technology is designed with high precision and low noise, specifically for achieving cold working of metal materials without cutting conditions.

    PRODUCT DETAILS
    The Jinqiu PF665 Accor forming machine is suitable for non cutting processing of sheet metal and profiles, and can complete various forming processes such as shrinkage, stretching, leveling, curved surfaces, and flanging.
    Jinqiu edge trimming and trimming technology is designed with high precision and low noise, specifically for achieving cold working of metal materials without cutting conditions.
    One device can handle both profile bending and sheet metal forming tasks simultaneously, whether it is used for the production of new workpieces or the repair and precision calibration of old parts, it is effortless.

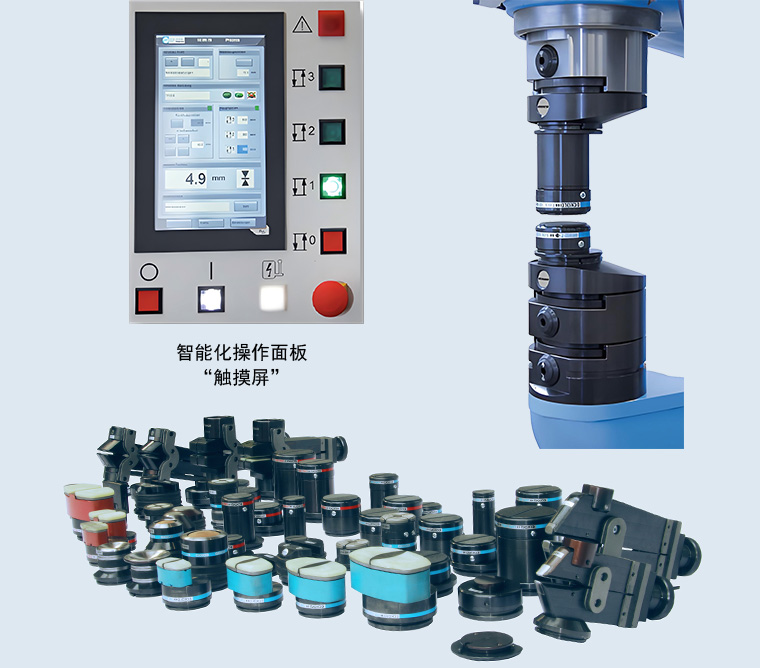

    The Jinqiu Accor machine supports quick replacement of various molds, which can be switched in just a few seconds, helping users flexibly respond to different process requirements. This intelligent processing solution is innovative in the industry.
    The Jinqiu PF665 Accor forming machine has a sturdy design and high durability. Its excellent control system enables the equipment to achieve delicate and precise adjustment while providing high pressure. The high adaptability and ability to quickly replace molds ensure that the entire machine remains in operation in practical applications.


    TECHNICAL SPECIFICATIONS

      Steel (Rm tensile strength=400 N/mm²): 6.0 mm   Aluminum (Rm tensile strength=250 N/mm²): 8.0 mm
      Copper (Rm tensile strength=250 N/mm²): 8.0 mm   Stainless steel (Rm tensile strength=600 N/mm²): 4.0 mm
      Horizontal throat opening: 665 mm   Vertical throat opening: 430 mm
      Work schedule: 8 mm   Working schedule per minute: 0-600 times/minute
      Rated power: 6.5 kw   Adjustment amount of punch: 80 mm
      By: servo motor   Drive: electric
      Stroke frequency: continuous stroke   Net weight: 2550 kg
      Net weight of control cabinet: 90 kg   Length: 2580 mm
      Width: 1321 mm   Height: 2440 mm



    FORMING TECHNOLOGY

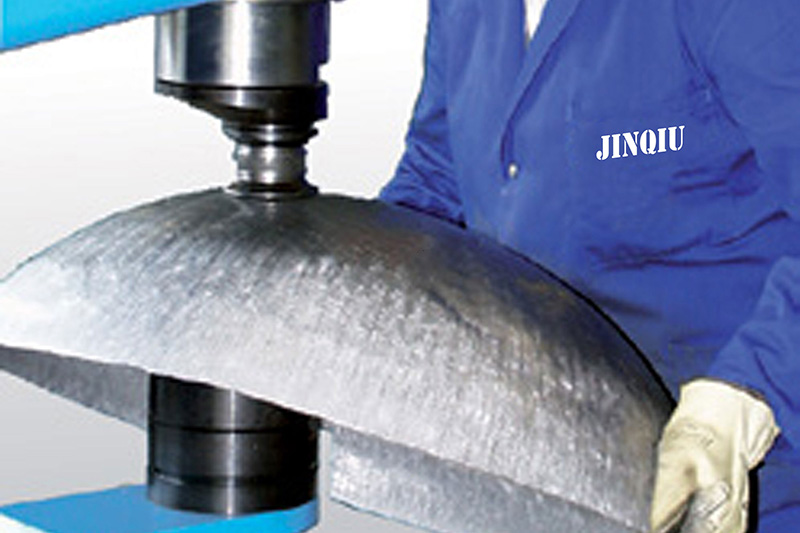

    Jinqiu technology means accurate and chip free cold forming of metal sheets and profiles, while minimizing noise.

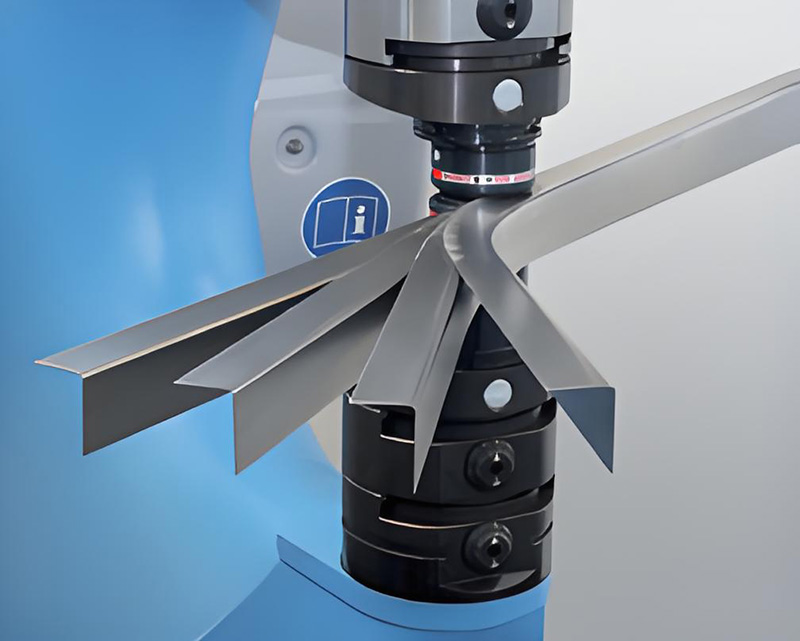

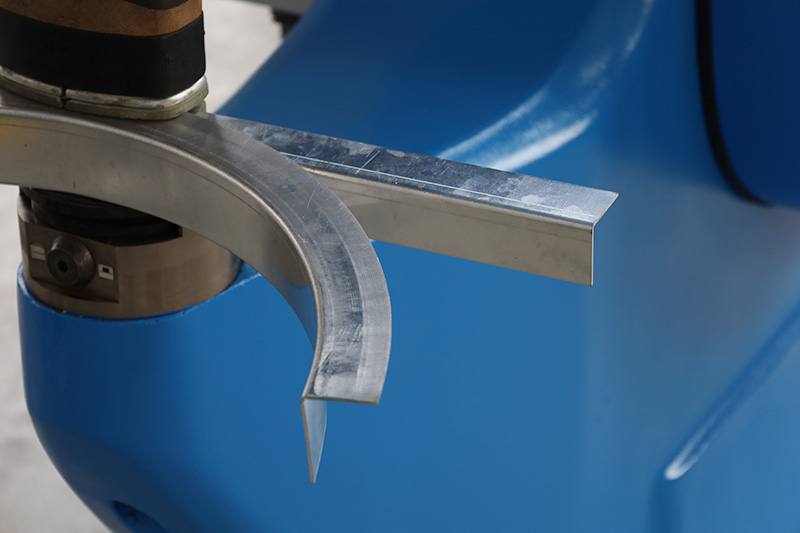

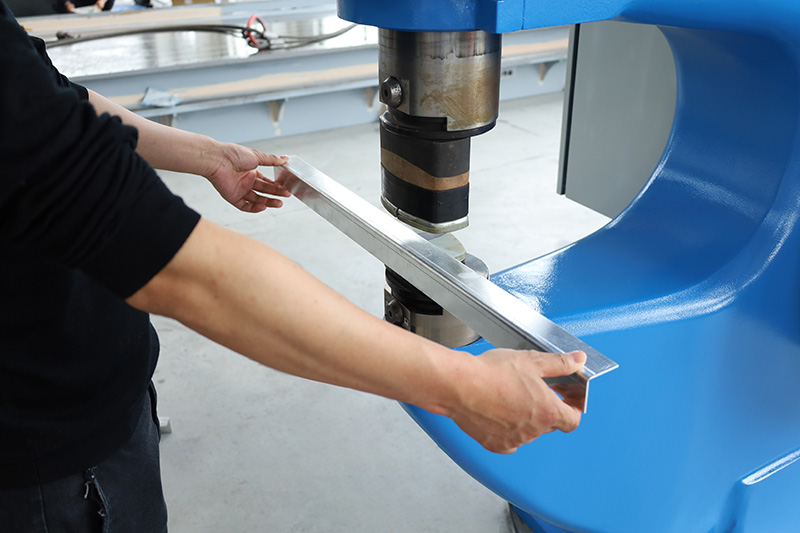

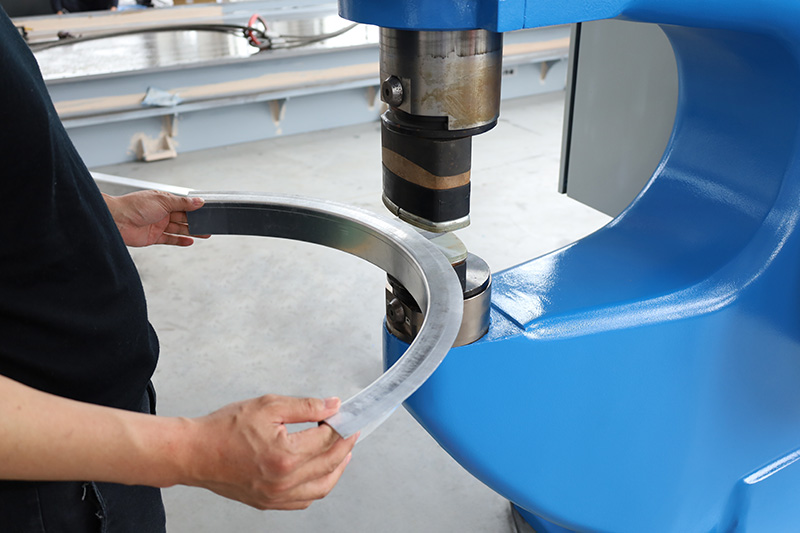

    The same machine can be used for bending profiles and forming metal sheets, manufacturing new parts, and repairing and accurately calibrating parts. Equipped with various tools that can be installed and replaced within seconds to adapt to the operation of the machine.
    The Jinqiu PF665 Accor Forming Machine is sturdy and durable, capable of providing immense pressure and highly sensitive control. Its high level of versatility stems from its wide variety of tools that are easy to replace, ensuring the use of the machine.




    CHARACTERISTICS AND ADVANTAGES
      Characteristics and advantages
    The Jinqiu Accor machine can help you obtain accurate results.
    We achieve this goal through an adjustable stroke position driven by a motor, with a repeatability accuracy of 0.1 millimeters and reduced human error.
    Better molding effect
    With the unique mold and molding technology of Jinqiu, better molding effects can be achieved.
    Tool monitoring, electronic fault tracking, and maintenance intervals indicated can ensure machine utilization.
    Higher processing efficiency
    Using the Jinqiu Accor machine can save the molding time of workpieces.
    The unique molds and forming technology increase the efficiency of sheet metal forming.

    ● New intelligent design
    ● Free choice of stroke speed
    ● Adjustable reverse position
    ● 100 storable processing programs
    ● Achieve reproducible results through stored processing programs
    ● Tool monitoring
    ● Electronic fault tracking
    ● Multiple molding tools ensure universality



    Aerospace manufacturing and aircraft maintenance: such as the bending parts of aircraft skin and the shaping and repair of aircraft engine casings Sheet metal processing for rail transit and high-speed rail: Manufacturing of train locomotives and carriages
    Shipbuilding and yacht manufacturing
    Old car restoration and prototype car manufacturing
    Heavy industry prototype production
    Repair industry (aircraft, rail cars, ships)
    Sheet metal custom machining center and OEM factory
    Metal art and large-scale sculpture industry
    Manufacturing of large stainless steel structures
    New energy equipment shell processing
    Irregular metal decorative panel
