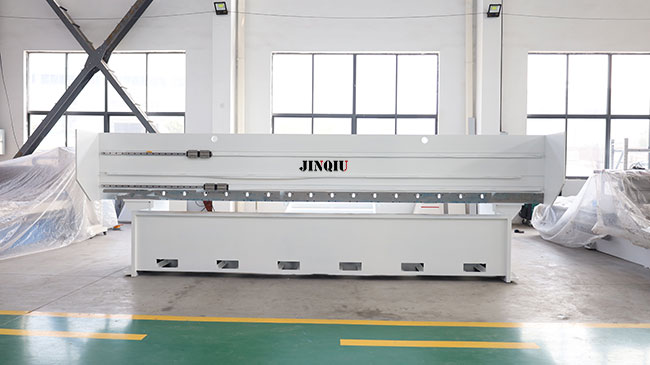

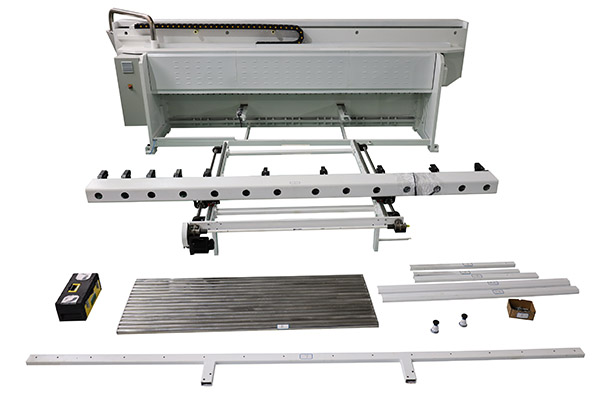

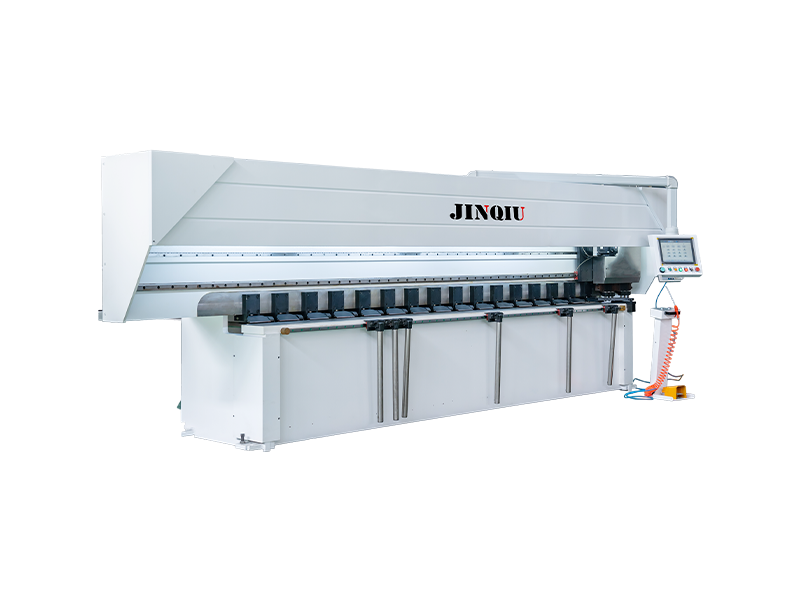

The Jinqiu vertical high-speed grooving machine adopts a frame structure and a low-alloy high-strength structural steel worktable. The integrated bottom film is formed in one go and can be processed on the mirror plate without leaving any marks; The whole machine is tempered in an electric furnace to eliminate welding stress, and is clamped and formed in one go through an imported CNC machining center to ensure that each installation surface is parallel and perpendicular; Sandblasting treatment ensures coating quality; During operation, the knife holder remains stationary, and the board is driven to move by the feed. The groove depth and distance are accurately controlled, and the overall rigidity is good, durable, and stable.

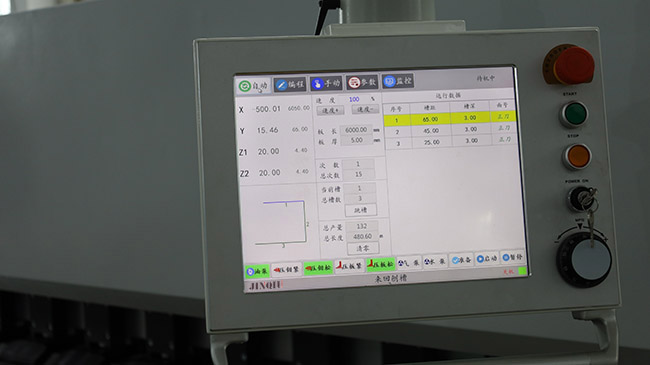

The CNC system of the Jinqiu vertical high-speed grooving machine can automatically calculate the groove distance based on the size and inner and outer diameter requirements of the sheet metal, achieving precise positioning; One click loop programming reduces programming time by 80%; Visual graphic editing supports hand drawing and import design; Real time bending effect simulation avoids input errors, reduces material waste, and achieves stable production.

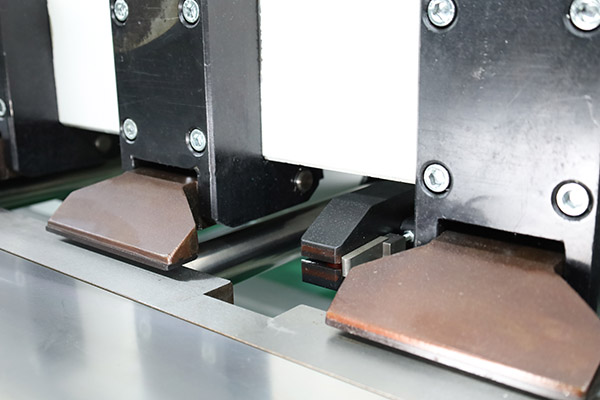

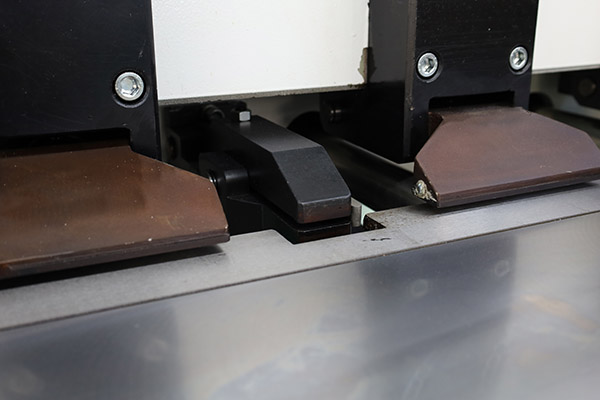

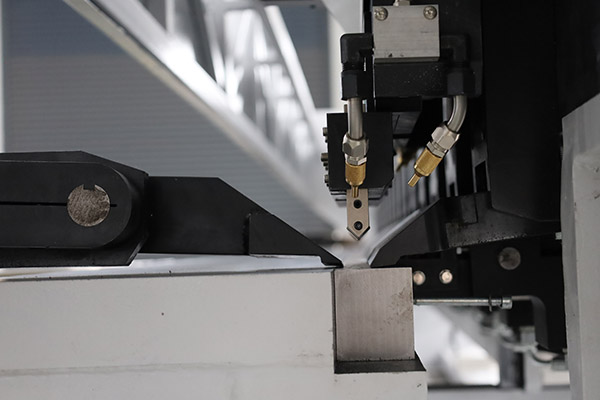

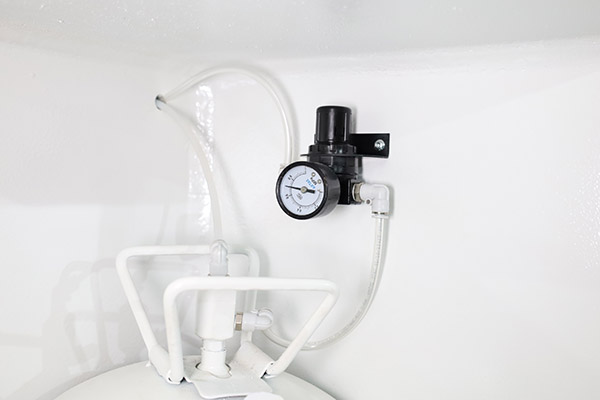

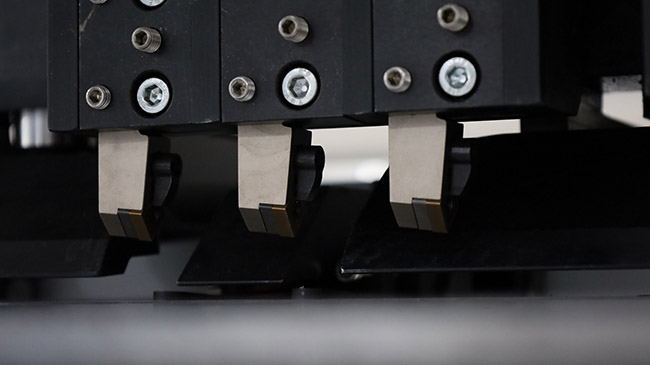

The Jinqiu vertical high-speed grooving machine adopts an integrated tool holder and a fully automatic self-lubricating system. The tool holder moves up and down synchronously for lubrication, effectively reducing friction loss and extending service life; Unique three blade distribution design, evenly distributing cutting amount, reducing workpiece deformation; Optional micro cooling device can further extend tool life and reduce production costs; The universal tool clamping interface supports the exchange of white steel tools and alloy tools, meeting various processing needs and assisting high-precision and stable production.

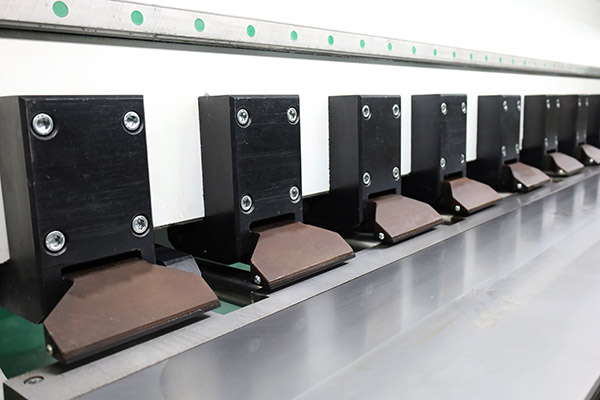

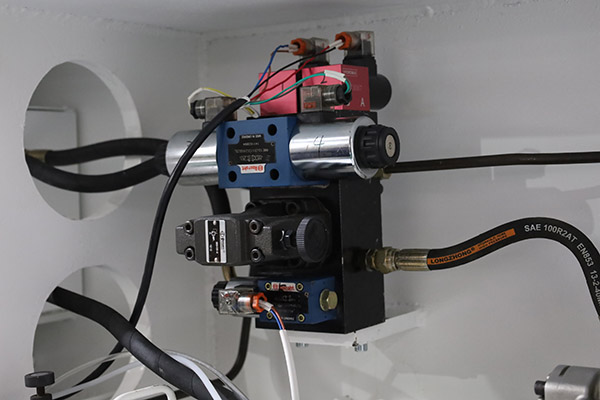

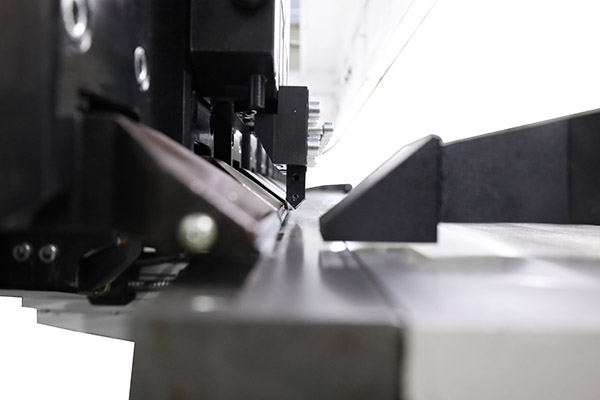

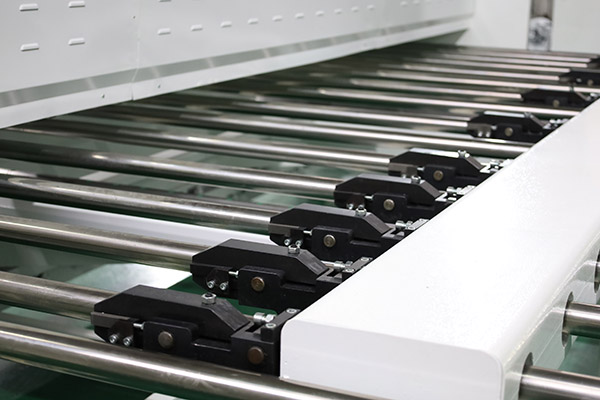

The Jinqiu vertical high-speed grooving machine adopts a carbon tool steel worktable, which has a hardness of 55-60HRC after high-frequency quenching, much higher than stainless steel, effectively preventing scratches and deformation, ensuring the flatness of the worktable is ≤± 0.03mm, improving V-groove accuracy and extending equipment life. Equipped with dense pressure feet and hydraulic system, the clamping force is stable and reliable.

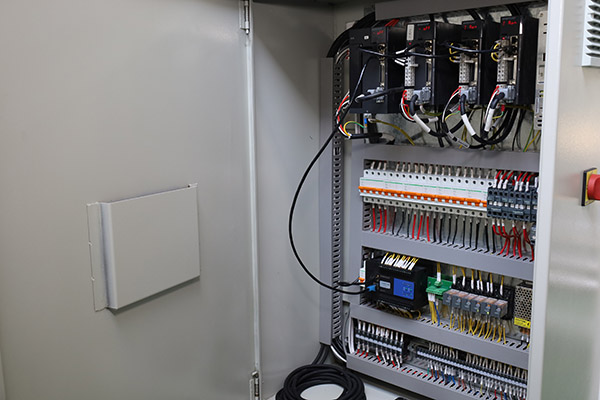

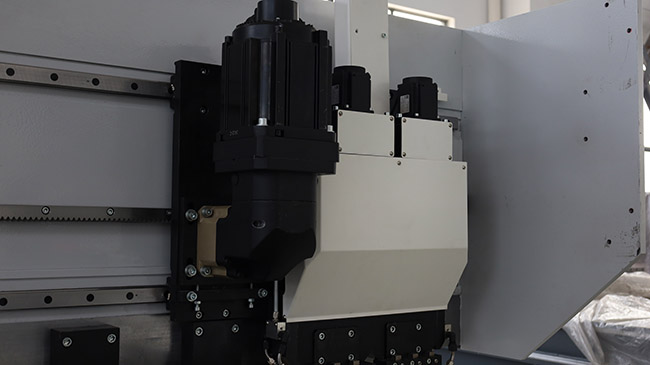

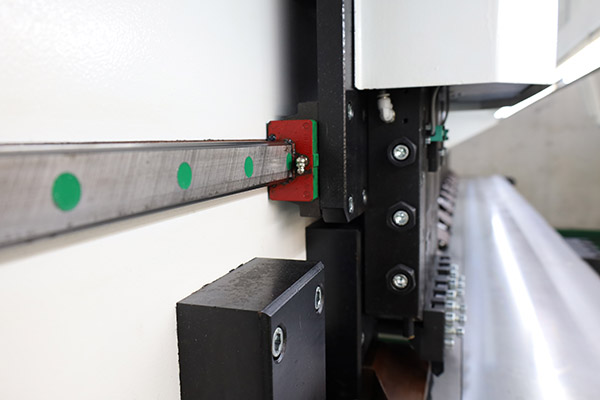

The whole machine of the Jinqiu vertical high-speed grooving machine adopts a full servo motor and planetary reducer, with high torque, high precision, low energy consumption, and fast response; The crossbeam transmission adopts a double guide rail structure of grinding helical gears and high-precision helical racks, with stable variable frequency speed regulation, achieving high-speed chip feed and stable processing, and meeting various processing needs, significantly improving production efficiency.
