Horizontal structure
The Jinqiu Fully Automatic Four-Side Grooving Machine is based on a horizontal gantry frame, and the machine base and crossbeam are tempered by an electric furnace to eliminate welding stress, ensuring high rigidity and stability of the machine tool; The overall rack undergoes CNC precision machining for one-time clamping, ensuring that the installation surface is parallel and perpendicular; The low-alloy high-strength steel tabletop is processed by self planing to be flat and smooth. During processing, the plate remains stationary to avoid wear and tear, making it particularly suitable for precision processing of decorative and mirror surface plates.
|
|
|
 |
CNC system

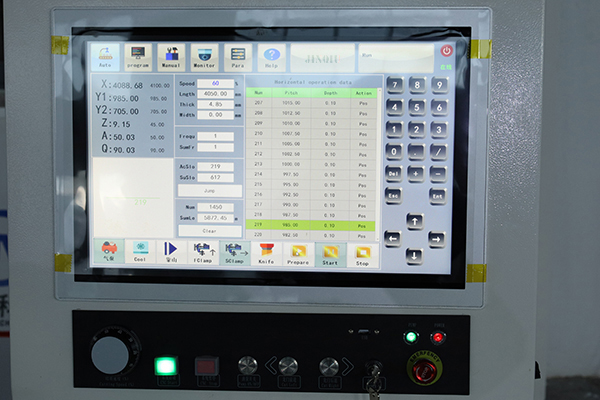

The Jinqiu fully automatic four sided grooving machine is equipped with an intelligent CNC system, which can automatically calculate the groove distance based on the size and inner and outer diameters of the sheet metal, achieving high-precision positioning and one click programming. Support selecting only long or wide edges for flexible adaptation to diverse process requirements. Built in visual graphic editing function, supporting hand drawing or importing drawings; Real time bending simulation avoids input errors, reduces raw material waste, and assists in stable sheet metal processing production.
|
|
|
 |
Rotating knife holder

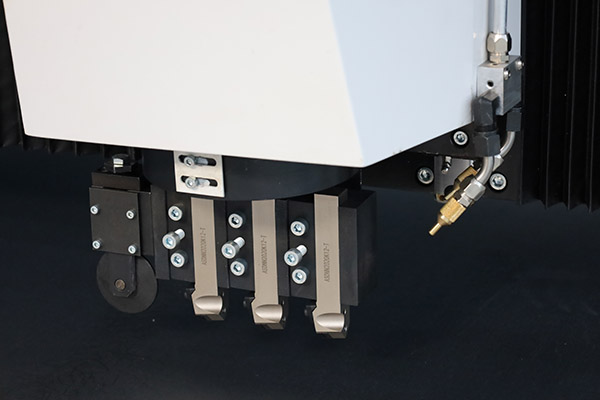

The Golden Ball fully automatic four sided grooving machine is equipped with an automatic rotating knife holder system, which can complete the four sided grooving of the board in one go without manual steering, effectively improving dimensional accuracy and production efficiency. The turret adopts hydraulic chuck locking, with high rotation accuracy and stable positioning. Simultaneous processing with three knives ensures even distribution of cutting force and reduces the risk of workpiece deformation. Support optional micro cooling system to extend tool life and reduce operating costs. The universal tool installation interface is compatible with both white steel and alloy knives, with flexible clamping to meet diverse machining needs. |
|
 |
Front presser foot
The Jinqiu fully automatic four sided grooving machine is equipped with multiple front pressure feet and pneumatic clamping systems, combined with pneumatic devices, effectively improving the strength of sheet metal fixation and ensuring processing stability. The transmission module adopts a fully enclosed design to prevent metal wire from being rolled in. Combined with high-precision components, it greatly reduces the failure rate, improves the reliability and accuracy of long-term operation, and is suitable for continuous production in complex environments. |
|
|
 |
Side pressure foot
The Jinqiu fully automatic four sided grooving machine is equipped with multiple movable side pressure feet and has automatic avoidance function. During horizontal machining, the tool holder always lowers the blade near the side pressure foot to ensure sufficient clamping force of the board at critical positions, effectively avoiding the risk of "flying board" caused by loose fixation.
This design significantly improves processing stability and operational safety, ensuring the precision and reliability of high-speed grooving processes.
|
|
|
|
