PRODUCT DETAILS

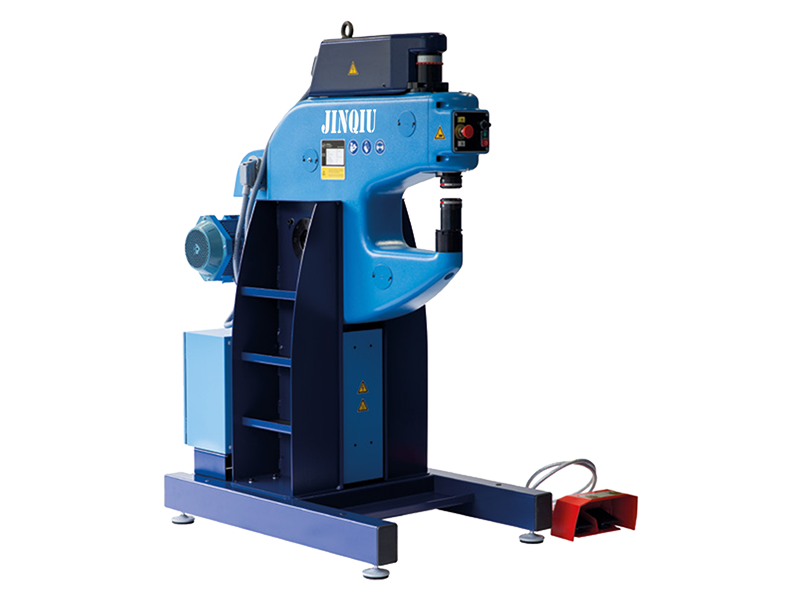

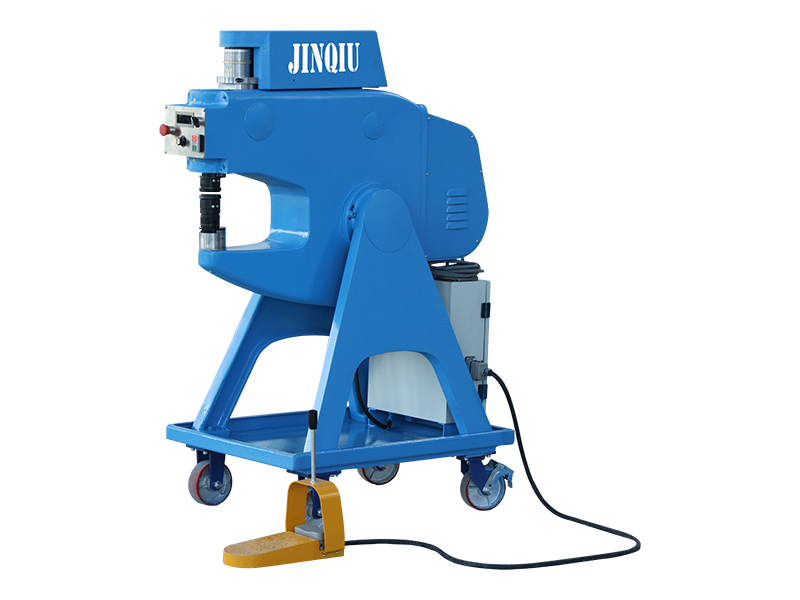

The Jinqiu PF350 Special-shaped surface rapid forming machine is a compact sheet metal cold forming equipment designed specifically for fine metal processing.
It is suitable for non cutting processes, including stretching, shrinking, curved surfaces, bulging, flanging, leveling and other forming operations, and is particularly suitable for scenarios such as prototype development, aviation maintenance, vehicle body repair, and metal art production. By using cold processing to achieve deformation, not only does it preserve material strength, but it also effectively improves the forming accuracy of the parts.
The PF350 Special-shaped surface forming machine adopts a compact structure and occupies a small space, making it very suitable for use in maintenance workshops or application environments that require mobile operations. The whole machine has simple operation and is equipped with a quick mold replacement system, supporting multiple molds to switch in seconds, greatly improving process response speed and production efficiency. The equipment operates with low noise and vibration, effectively improving the work experience and meeting the comfort and operational stability requirements of professional technicians.
Although the size is exquisite, the Jinqiu PF350 curved surface forming machine has strong processing capabilities and can be applied to various common metal sheets such as aluminum, copper, stainless steel, etc. Applied in industries such as aviation manufacturing, rail transit, automotive parts, and building decoration, it is particularly suitable for flexible processing needs of multiple varieties and small batches.
Jinqiu always focuses on high-quality cold forming solutions. The PF350 forming machine inherits the brand's durable and precise mechanical design, adopting a high-strength frame structure and standardized mold interfaces to ensure stable operation and continuous output of the equipment. For manufacturers and maintenance technicians who pursue flexibility and high-quality molding processes, the PF350 special-shaped surface rapid forming machine is a professional equipment that is worthy of long-term trust.
TECHNICAL SPECIFICATIONS
|
|
|
|
|
|
|
|
|
|
○ |
Steel (Rm tensile strength=400 N/mm²): 2.0 mm |
|
○ |
Aluminum (Rm tensile strength=250 N/mm²): 2.5 mm |
|
|
|
○ |
Copper (Rm tensile strength=250 N/mm²): 2.0 mm |
|
○ |
Stainless steel (Rm tensile strength=600 N/mm²): 1.5 mm |
|
|
|
○ |
Horizontal throat opening: 350 mm |
|
○ |
Vertical throat opening: 188 mm |
|
|
|
○ |
Work schedule: 8 mm |
|
○ |
Working schedule per minute: 0-400 times/minute |
|
|
|
○ |
Rated power: 1.5 kw |
|
○ |
Adjustment amount of punch: 80 mm |
|
|
|
○ |
Through: ssynchronous motor |
|
○ |
Drive: electric |
|
|
|
○ |
Stroke frequency: continuous stroke |
|
○ |
Net weight: 550 kg |
|
|
|
○ |
Length: 1720 mm |
|
○ |
Width: 1040 mm |
|
|
|
○ |
Height: 1660 mm |
|
|
|
|
|
|
|
|
|
|
|
|
FORMING TECHNOLOGY
Jinqiu technology enables precise, chip-free cold forming of metal sheets and profiles with low noise generation.
The same machine can be used to bend profiles and form metal sheets, create new parts, as well as repair and accurately calibrate components. Equipped with a variety of tools that can be installed and replaced within seconds to adapt to the machine’s tasks.
The Jinqiu PF350 Special-shaped Surface Forming Machine is robust, delivers tremendous pressure, and offers highly responsive control. Its exceptional versatility stems from the wide range of easily interchangeable tools, ensuring broad applicability of the machine.
CHARACTERISTICS AND ADVANTAGES
|
|
|
|
 |
|
Features and Advantages
The Jinqiu Special-shaped Surface Rapid Forming Machine helps you achieve precise results.
This is made possible by an electrically adjustable stroke position with a repeat accuracy of 0.1 mm, significantly reducing human error.
Better Forming Quality
Thanks to Jinqiu’s unique tooling and forming technology, superior forming results are achieved.
Tool monitoring, electronic error tracking, and indicated maintenance intervals ensure high machine utilization.
Higher Processing Efficiency
The Jinqiu Special-shaped Surface Forming Machine reduces forming time for workpieces.
Unique molds and forming techniques enhance the efficiency of sheet metal forming. |
● All-new intelligent design
● Freely selectable stroke speed
● Adjustable reversal position
● 100 storable processing programs
● Repeatable results through saved programs
● Tool monitoring
● Electronic fault tracing
● Multiple forming tools for broad versatility

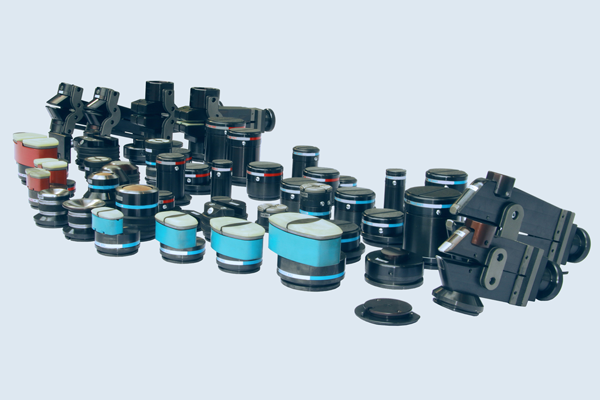

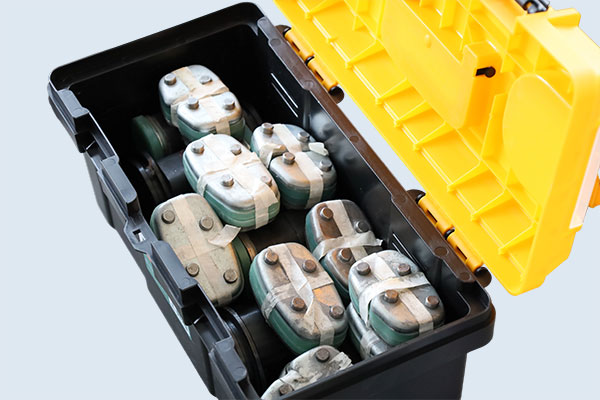

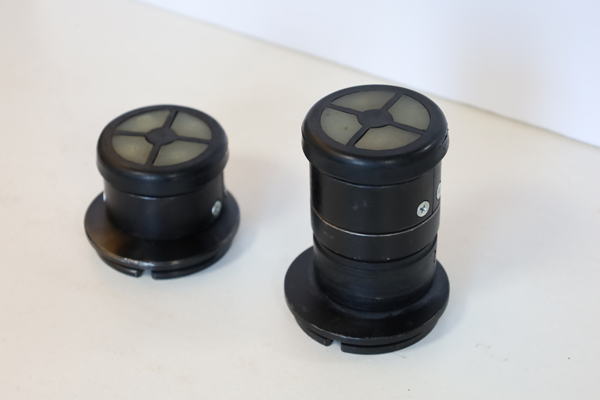

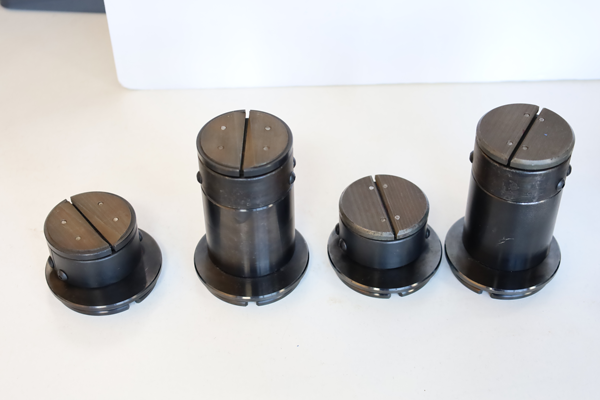

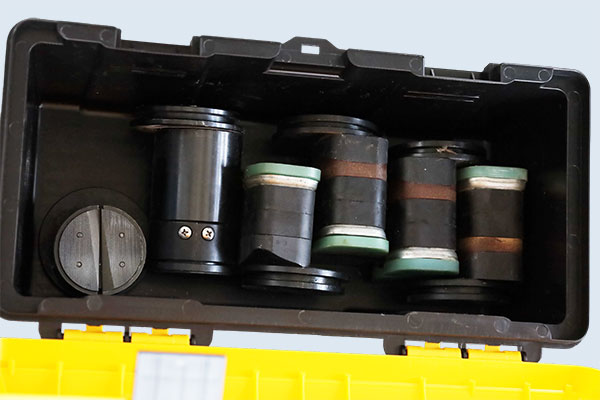

MOLD
Stable and reliable molds
Jinqiu forming molds are specifically developed for Jinqiu power forming machines and pneumatic forming machines.
No one offers as extensive a range of sheet metal shaping and forming tools as Jinqiu, capable of meeting the demands of virtually any forming task and material.
Our tool design has a long service life.
Most Jinqiu forming molds can be used for a variety of different materials and workpiece shapes.
They have high working accuracy and are designed for low-noise molding. For example, using a single mold, you can shape a metal sheet and remove wrinkles. Because the pressure control is accurate, the same mold can be used for fine adjustment or correction tasks. This versatility is the unique feature of the Golden Globe brand.
Due to the fast tool changing system, the time for re clamping has been shortened.
Sawing arc ➠ Clamp ➠ Leveling ➠ Hemming ➠ Put it aside ➠ Arch ➠ Extension ➠ Profiling ➠ Correction ➠ Edge planning ➠ Flanging ➠ Punching
Car repair and retro car restoration
Aviation light maintenance
Model manufacturing and prototype development
Metal Art and Sculpture Industry
Teaching and Technical Training
Sample production of elevator door panels and kitchen and bathroom equipment
Small hardware manufacturers and repair stations
