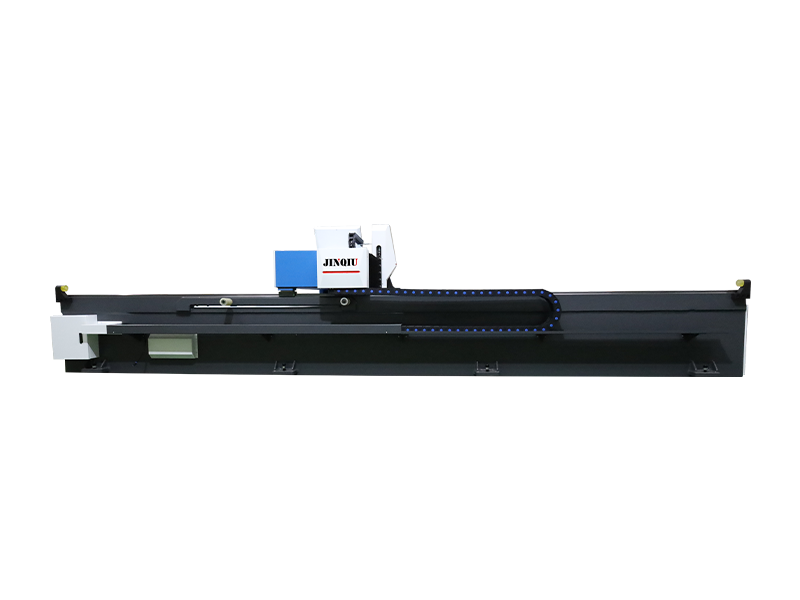

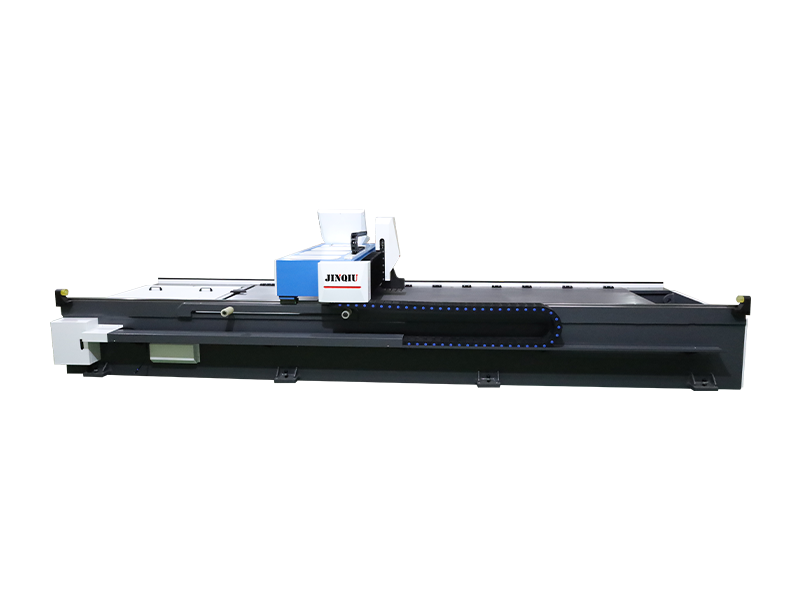

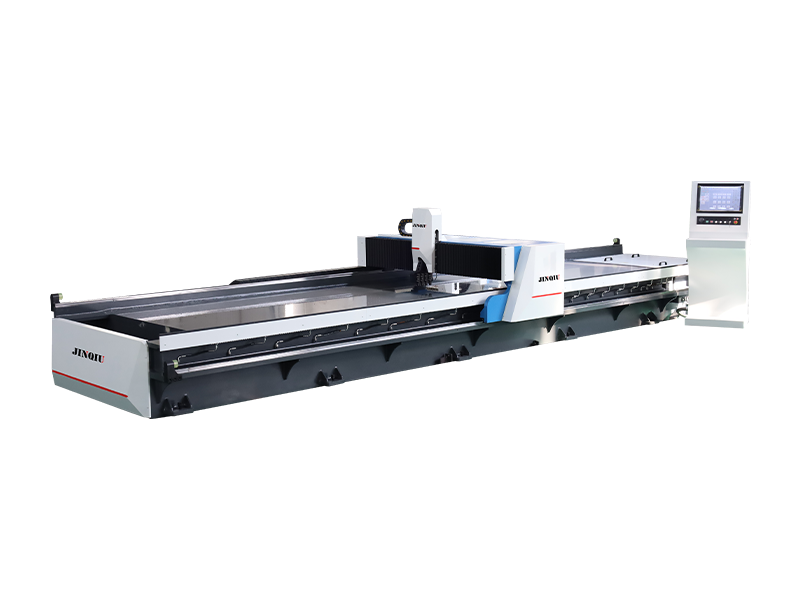

Horizontal structure

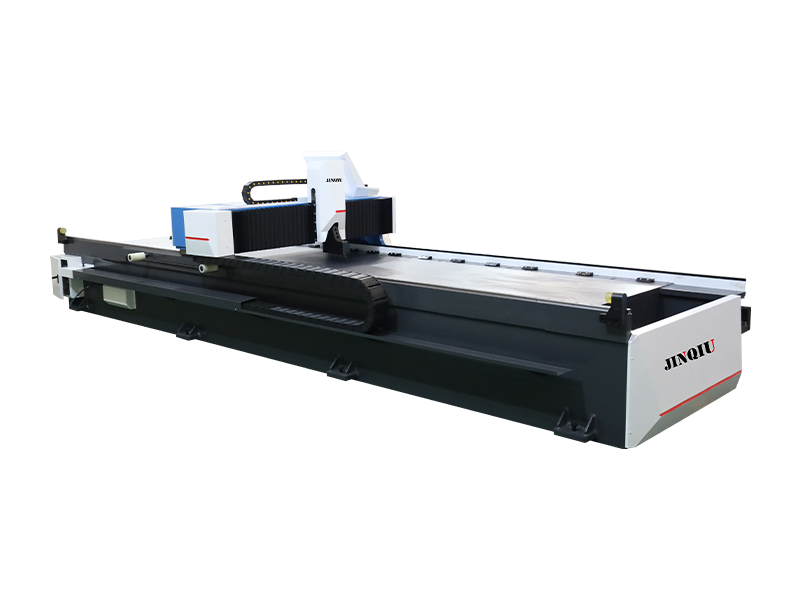

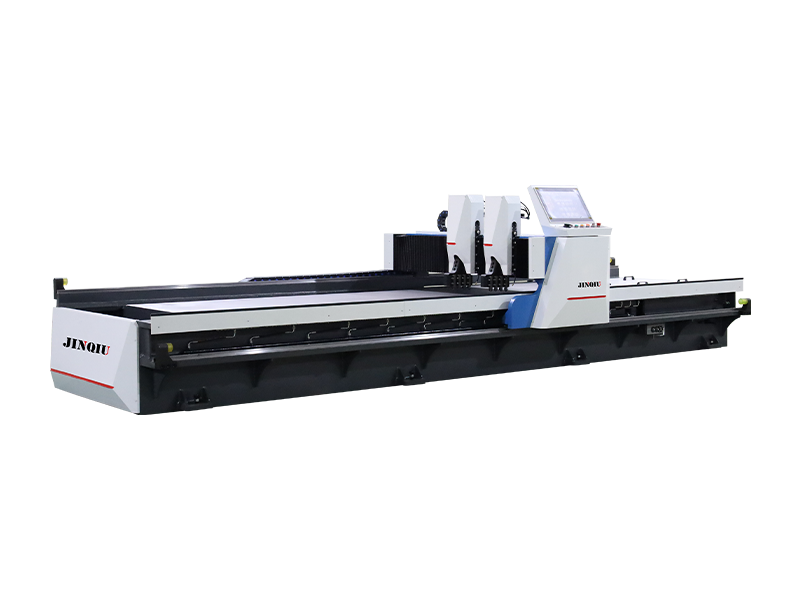

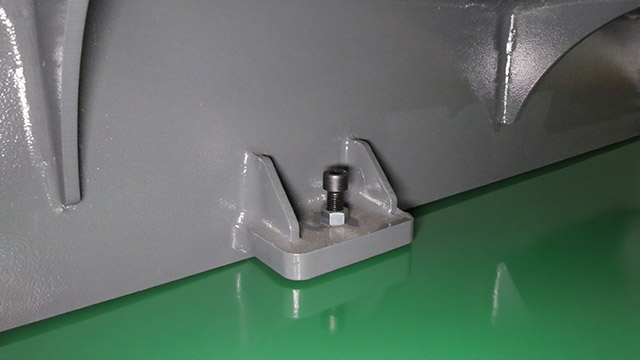

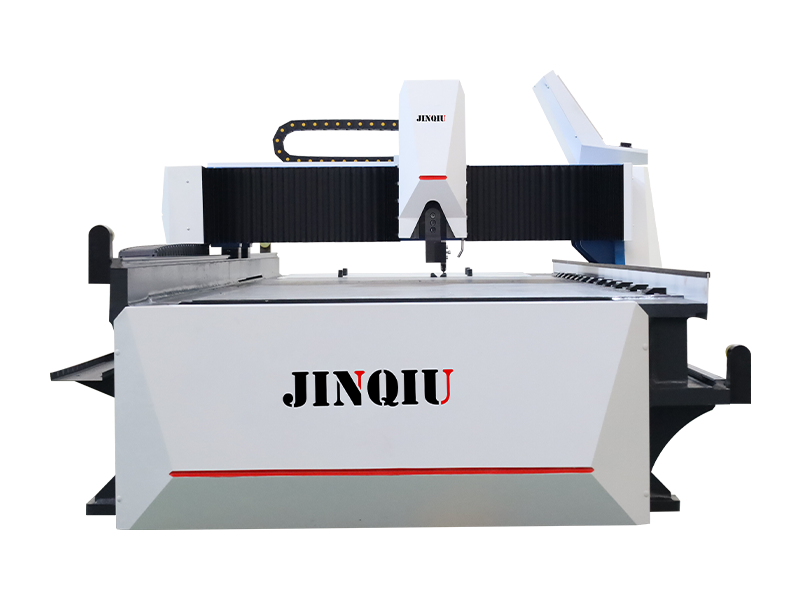

The Jinqiu horizontal high-speed grooving machine adopts a horizontal gantry frame as the skeleton, and the machine base and crossbeam are tempered by an electric furnace to eliminate welding stress, ensuring high rigidity and stability of the machine tool; The overall rack undergoes CNC precision machining for one-time clamping, ensuring that the installation surface is parallel and perpendicular; The low-alloy high-strength steel tabletop is processed by self planing to be flat and smooth. During processing, the plate remains stationary to avoid wear and tear, making it particularly suitable for precision processing of decorative and mirror surface plates. |
|
|
 |
CNC system

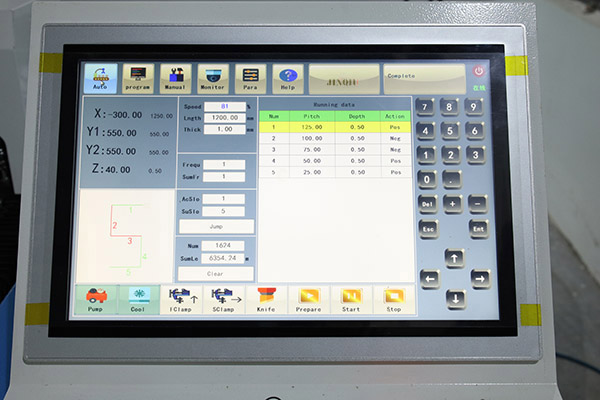

The CNC system of the Jinqiu horizontal high-speed grooving machine can automatically calculate the groove distance based on the size and inner and outer diameter requirements of the sheet metal, achieving precise positioning; One click loop programming reduces programming time by 80%; Visual graphic editing supports hand drawing and import design; Real time bending effect simulation avoids input errors, reduces material waste, and achieves stable production.
|
|
|
 |
Activity foot pressure

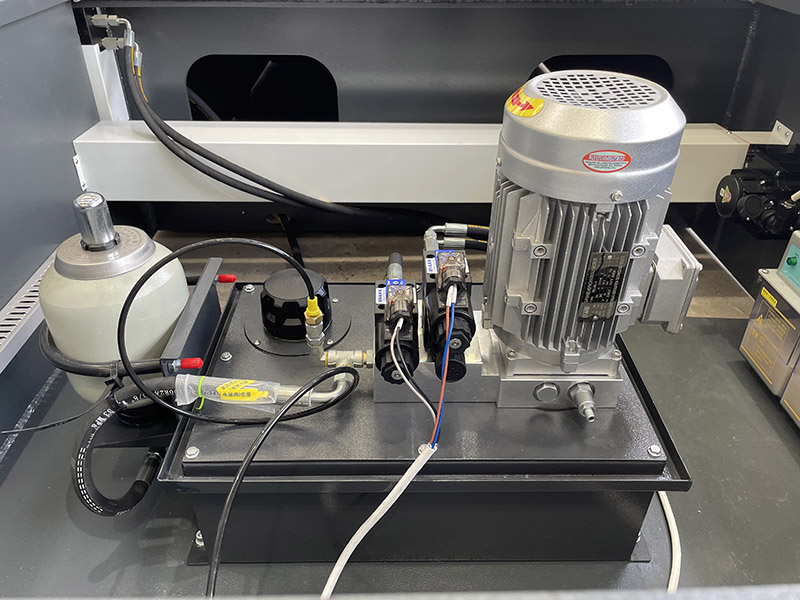

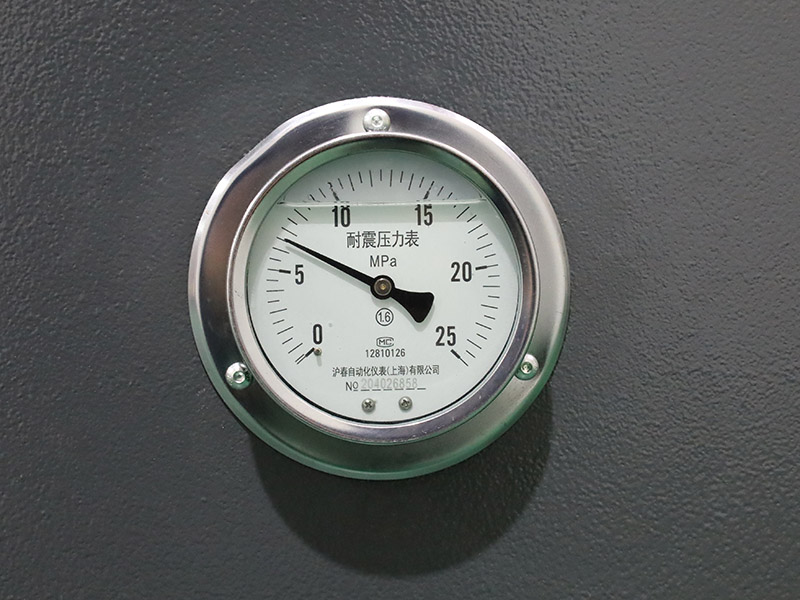

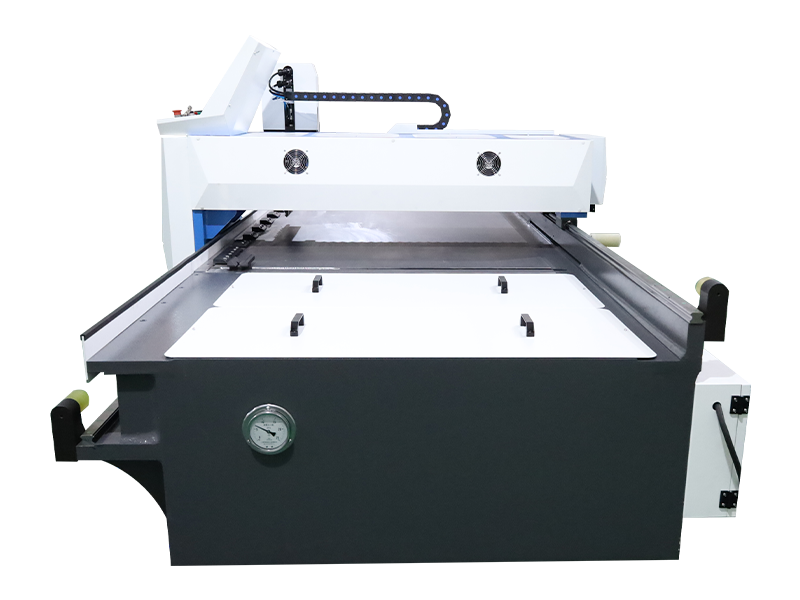

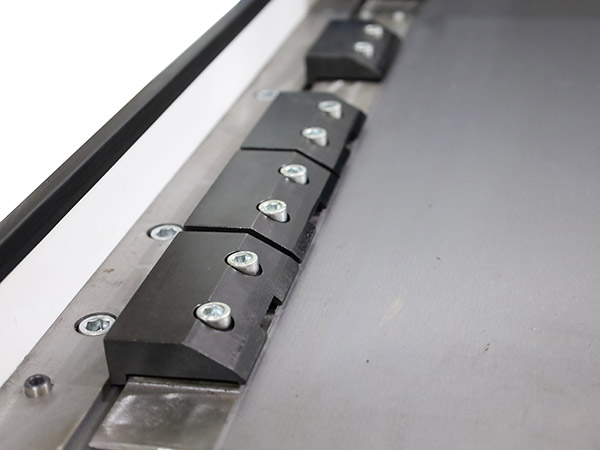

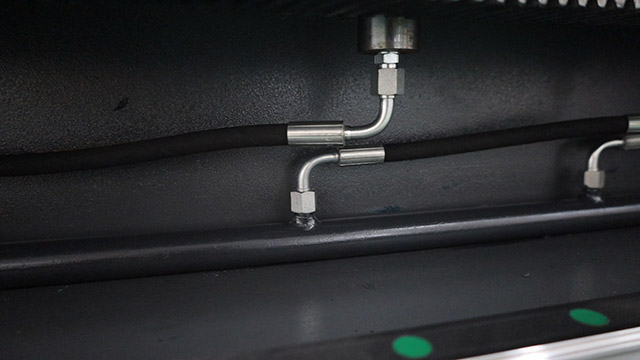

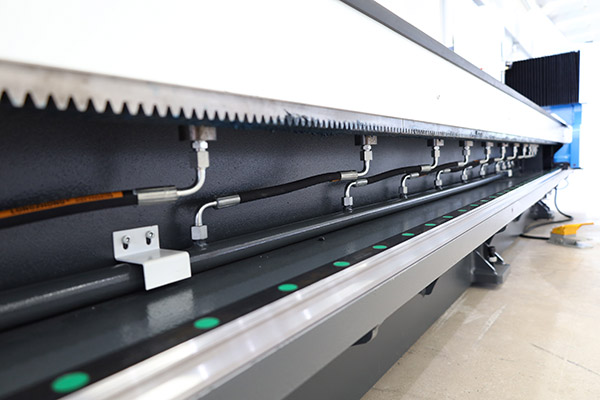

The Jinqiu horizontal high-speed grooving machine is equipped with an extended movable presser foot, which can achieve more stable plate fixation during the processing of pre cut corner workpieces; The entire machine adopts a hydraulic balanced clamping system, combined with high-precision guidance and position measurement, to achieve adjustable material pressure and reliable clamping, and protect the board surface in all directions; The hydraulic circuit is equipped with an accumulator compensation and adopts a motor no-load starting mode, which not only saves energy but also stabilizes the oil temperature, ensuring long-term operation.
|
|
|
 |
High precision transmission

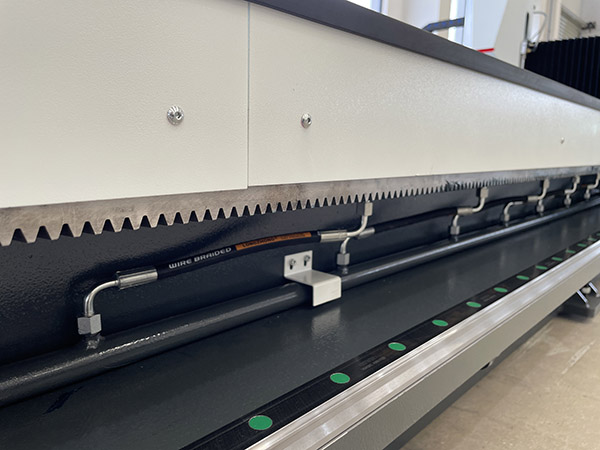

The whole machine of the Jinqiu horizontal high-speed grooving machine adopts a full servo motor and driver combination, with high torque, high precision, low energy consumption, and fast response; The crossbeam transmission adopts a double guide rail structure of grinding helical gears and high-precision helical racks, with stable and efficient variable frequency speed regulation, achieving high-speed chip feed and stable processing, and meeting various processing needs, significantly improving production efficiency.
|
|
